How to Order Magnetics Tape Wound Cores

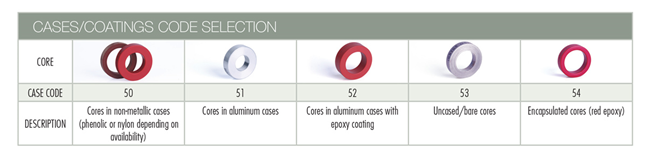

Magnetics tape cores, bobbin cores, amorphous cut cores, and nanocrystalline cores have unique part numbers that provide important information about the characteristics of the cores.  A description of part type is provided below. Learn More about Tape Wound Core Cases and Coatings .

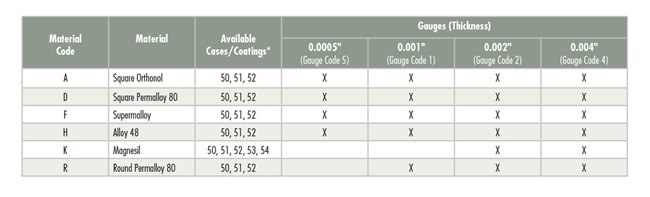

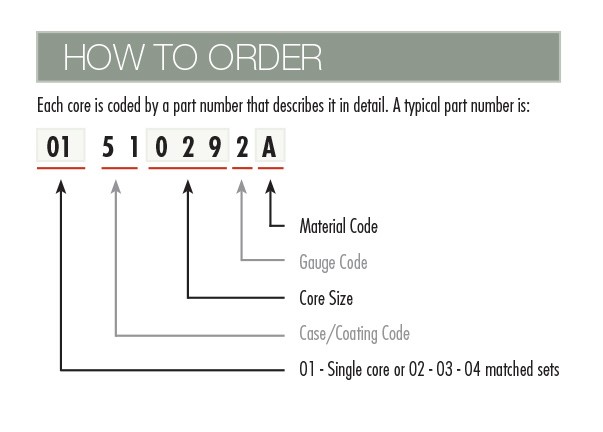

Tape Cores


Click to view larger

Click to view larger

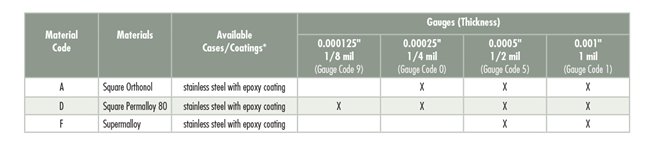

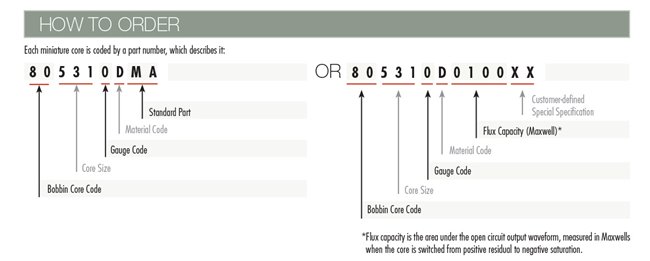

Bobbin Cores

Click to view largerBobbin-Core-Materials-Cases-Gauges.jpg
Click to view larger

Nanocrystalline Cores



Amorphous Cores
