High Flux Material Curves

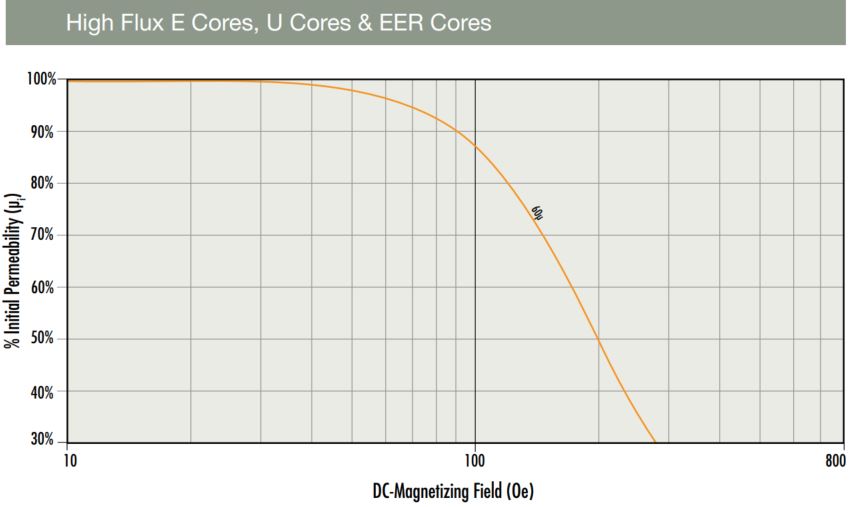

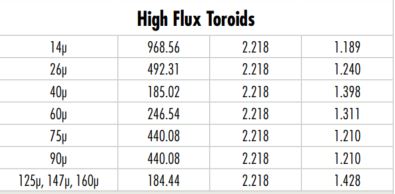

DC Magnetization Curves

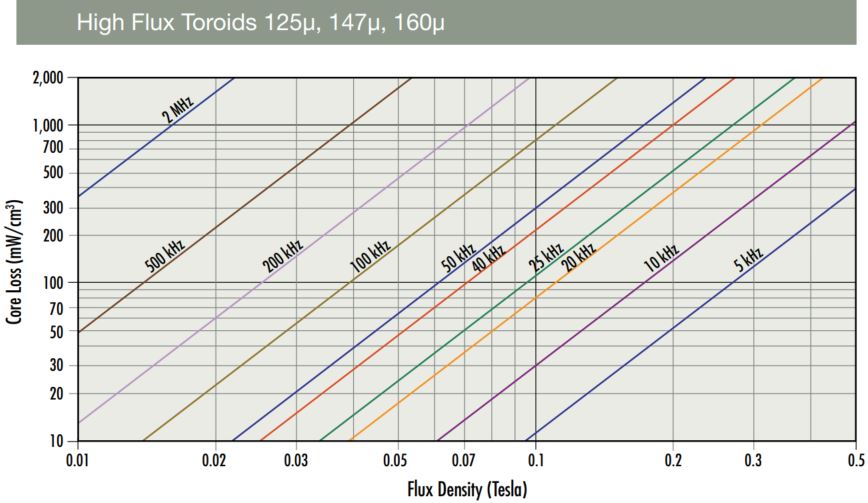

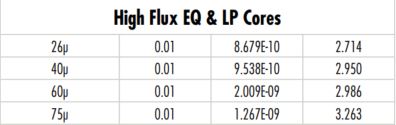

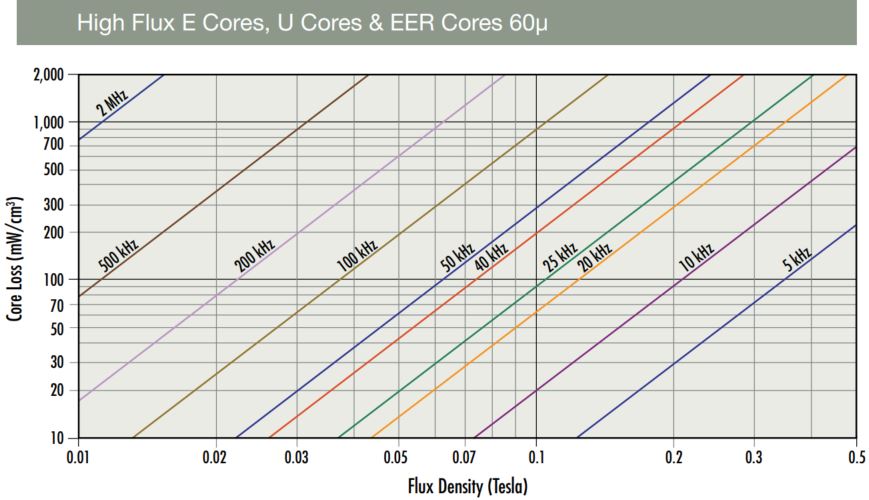

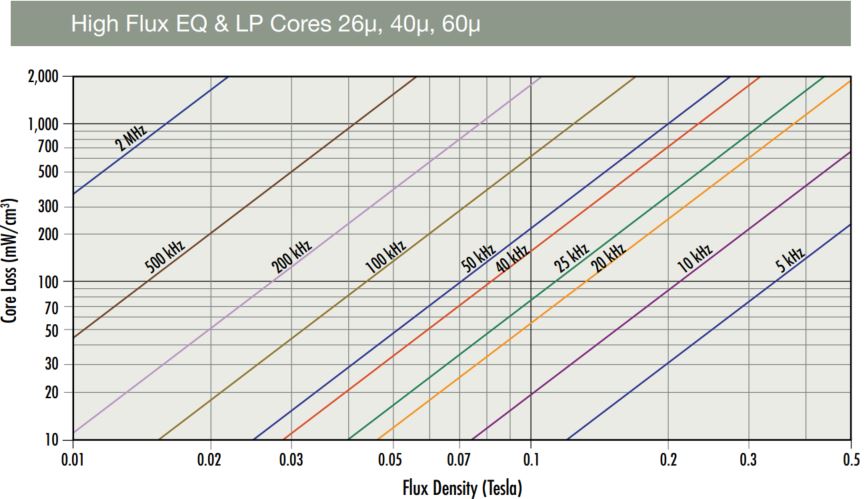

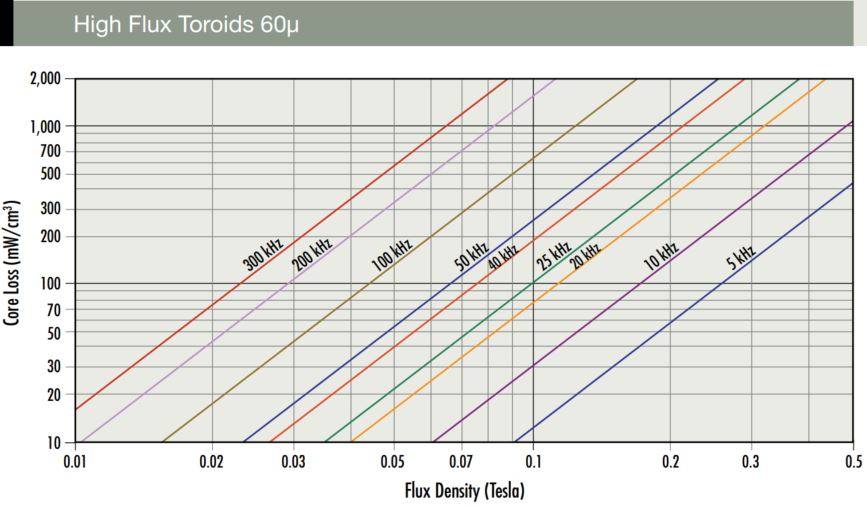

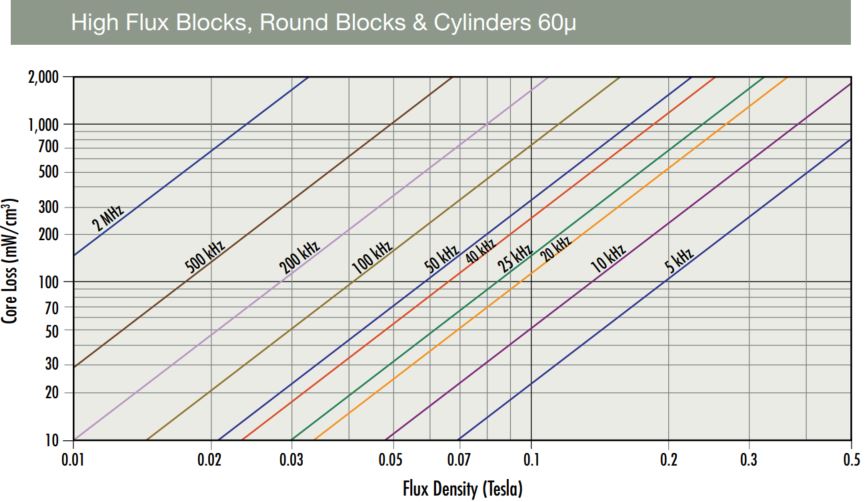

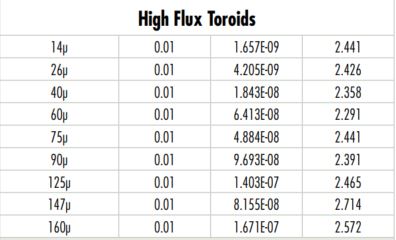

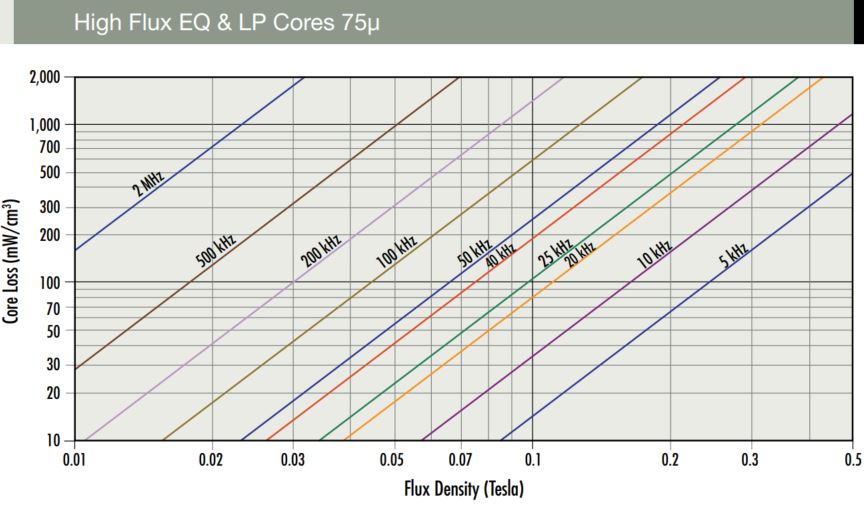

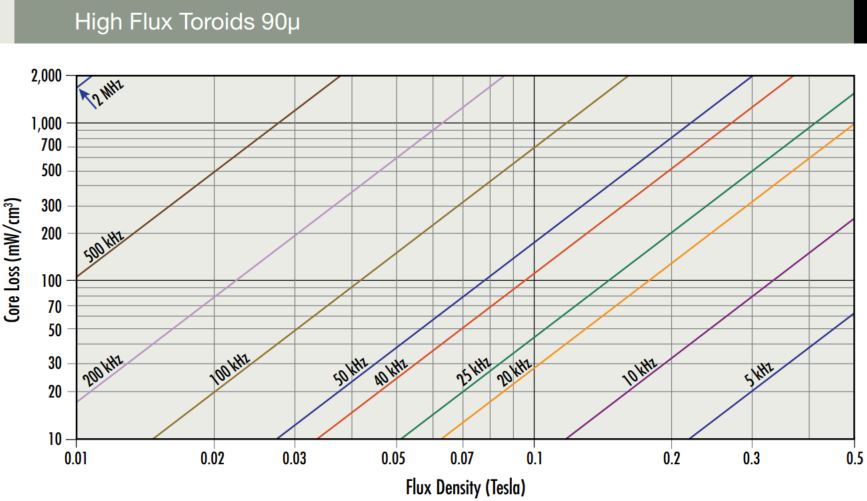

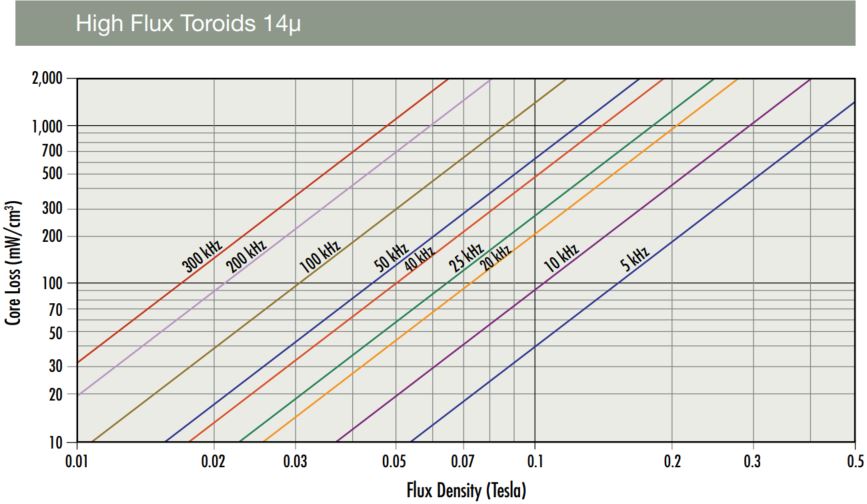

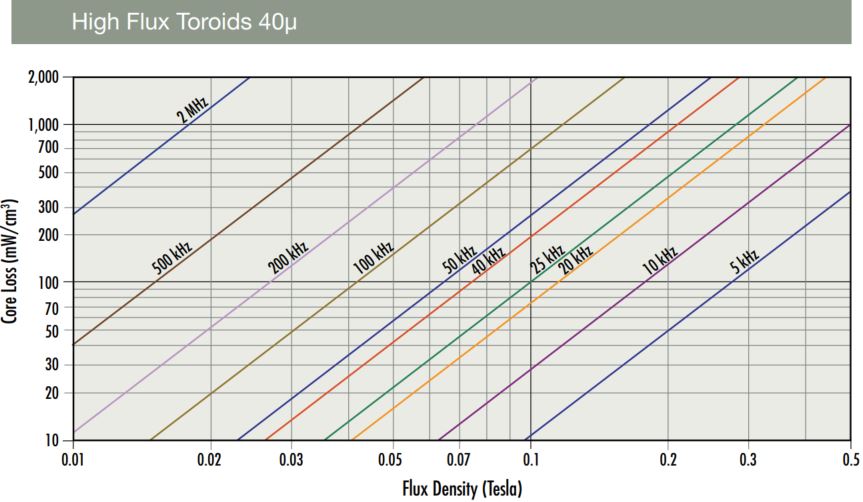

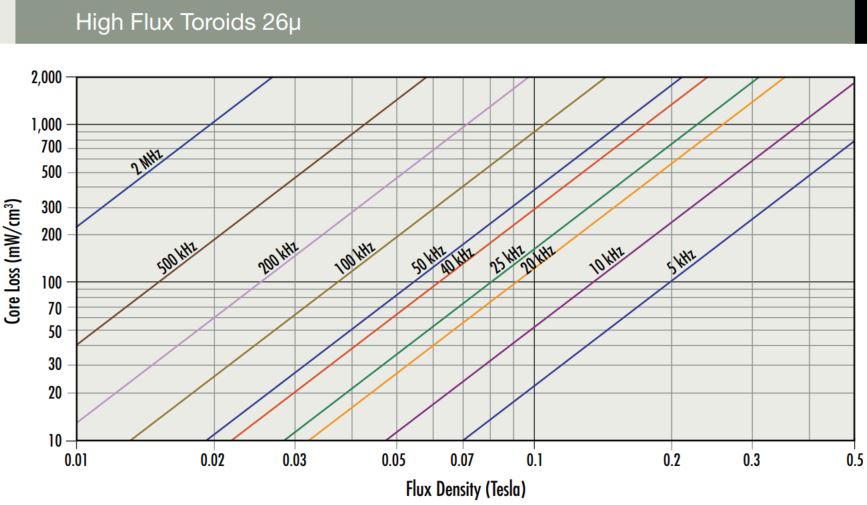

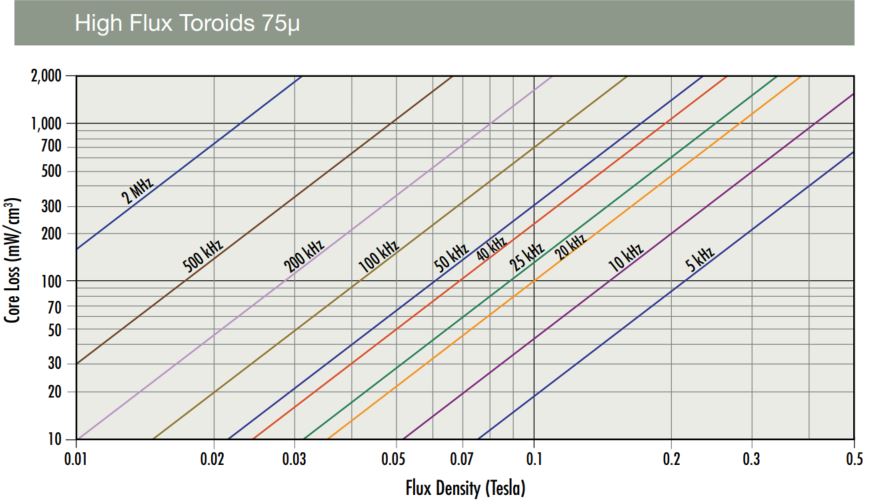

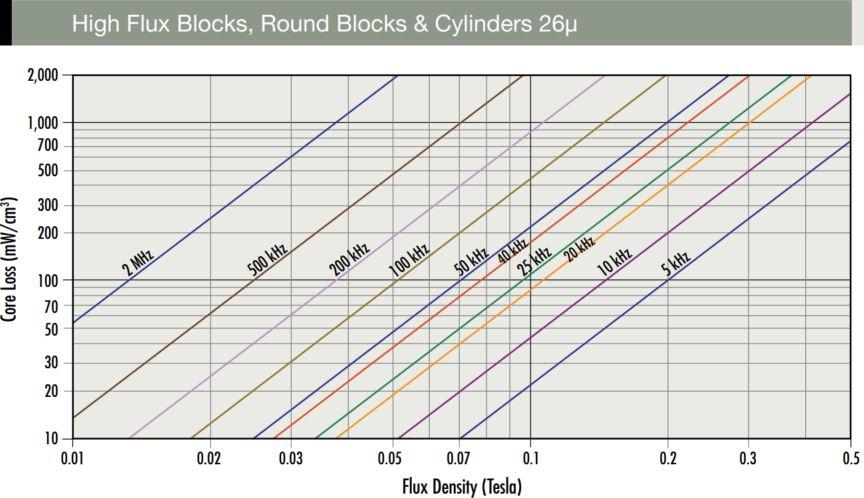

Core Loss Density Curves

Permeability vs. Temperature Curves

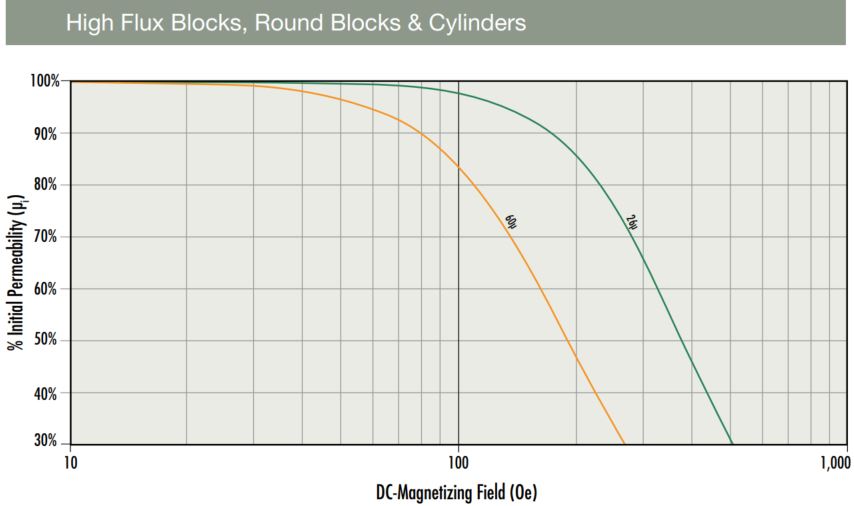

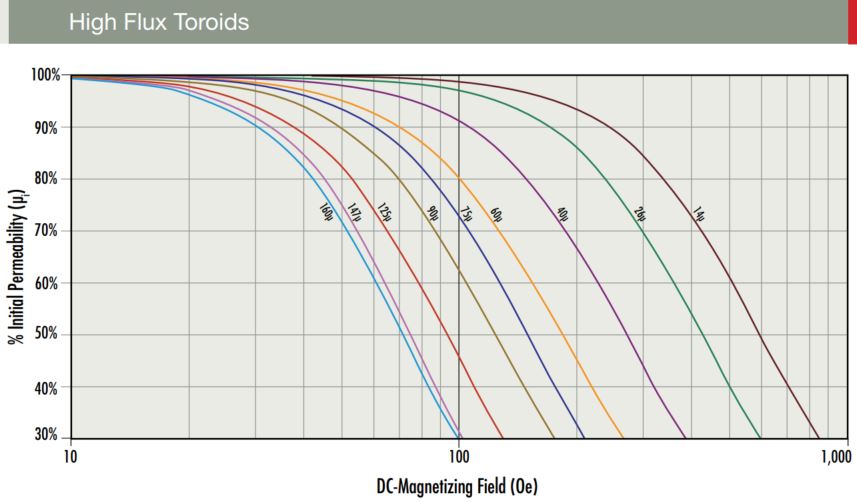

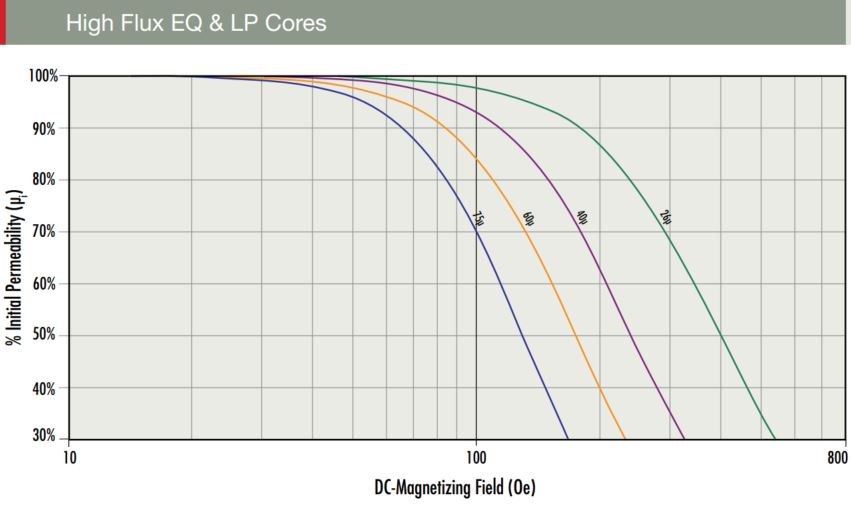

Permeability vs. DC Bias Curves

High Flux EQ Cores

Permeability vs. Frequency Curves


Core Selection ChartHighFluxToroidsCoreSelectionChartEN3_16.png
