Square Orthonol Material Property Curves

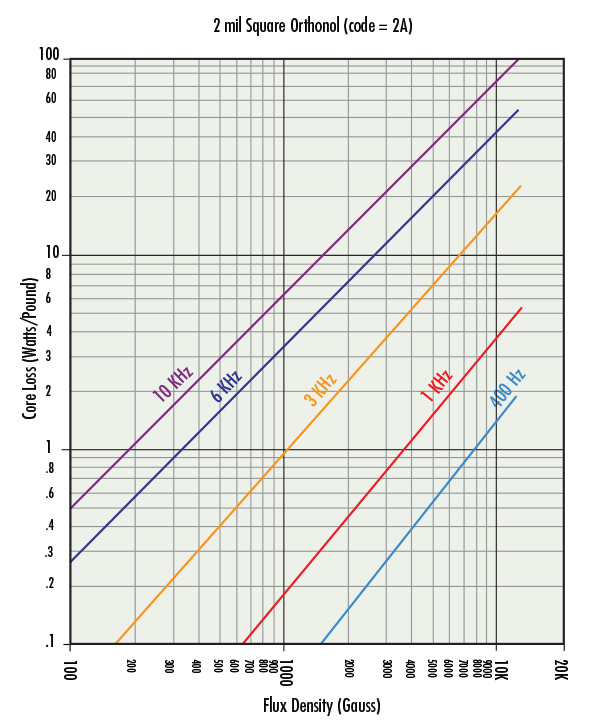

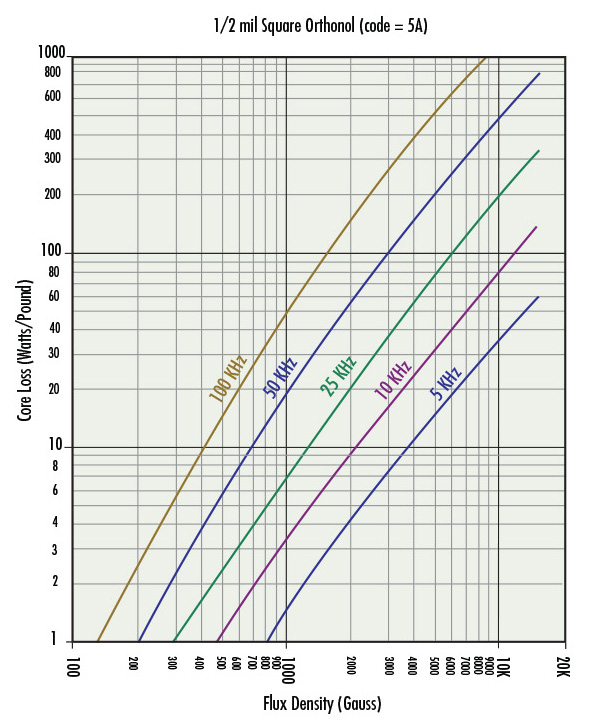

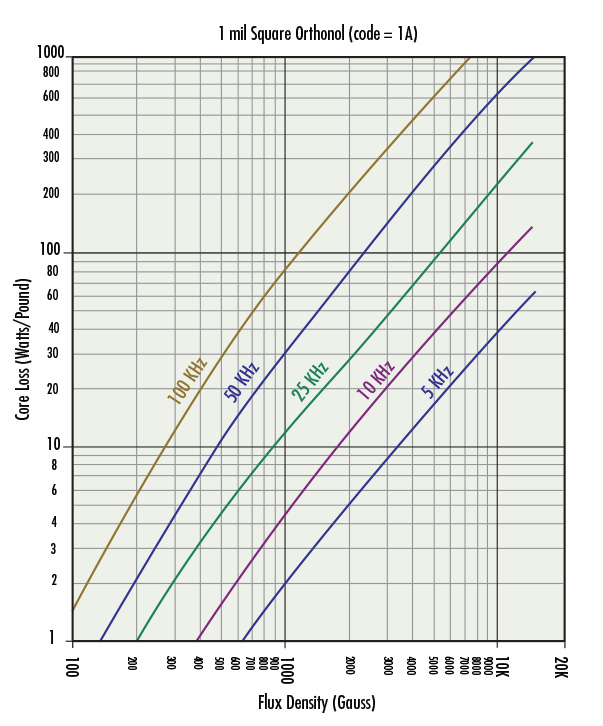

Core Loss vs. Induction Level Curves

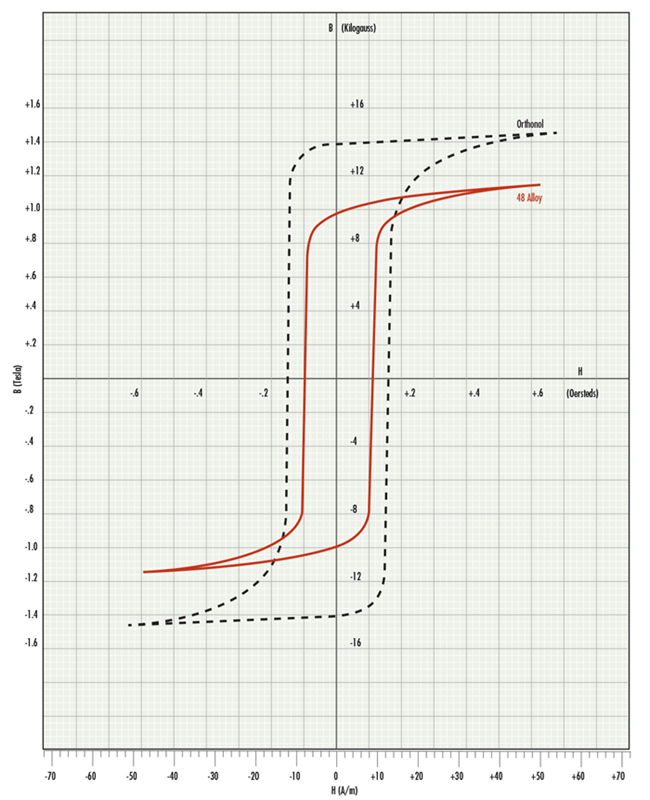

Typical Hysteresis Loops
