XFlux^® Material Curves

Jump to:

• Core Loss Density Curves
• Permeability versus DC Bias Curves
• DC Magnetization Curves
• Permeability versus Temperature Curves
• Permeability versus AC Flux Curves
• Permeability versus Frequency Curves
• Core Selection Chart

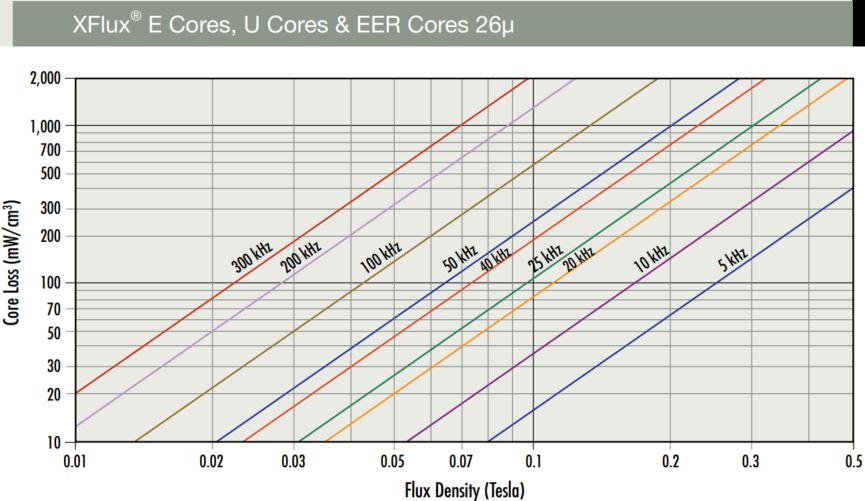

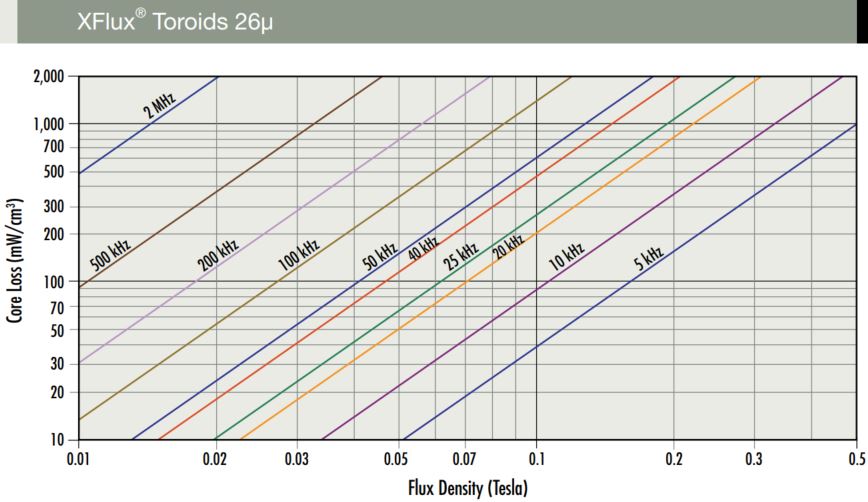

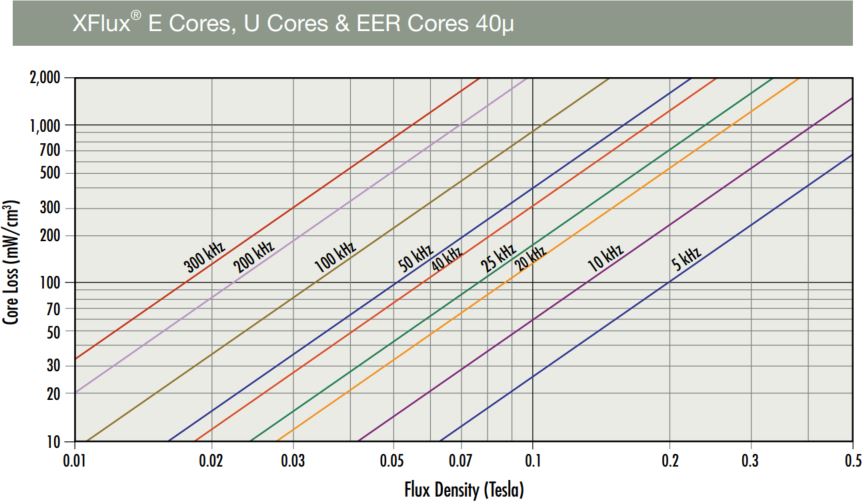

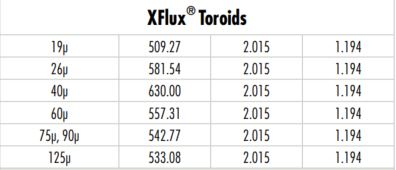

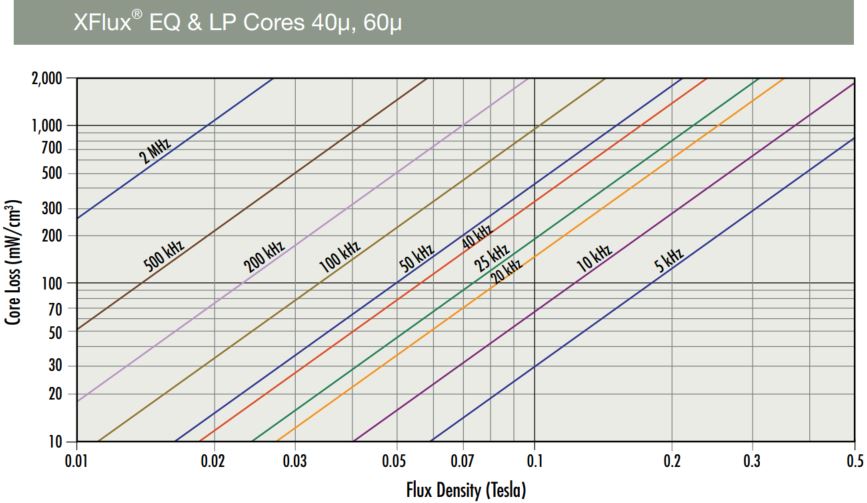

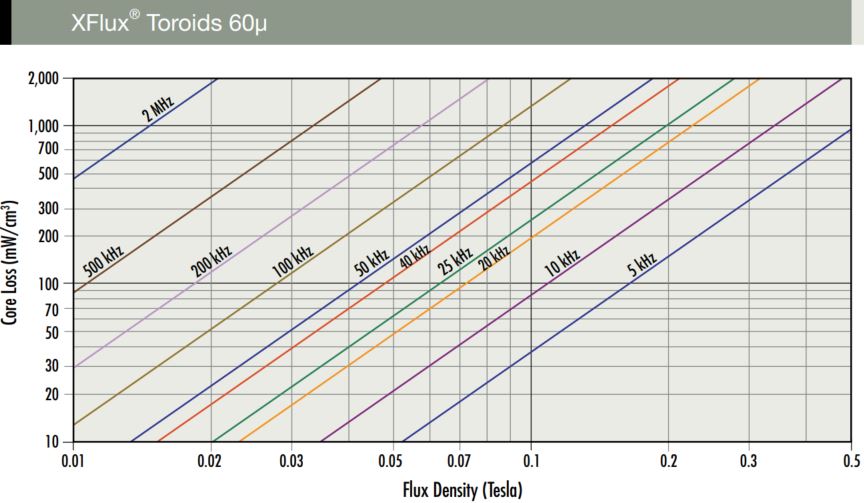

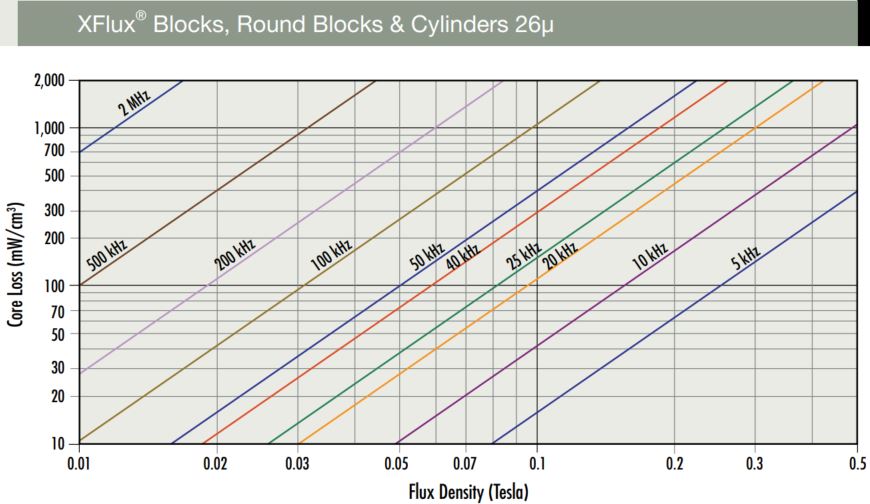

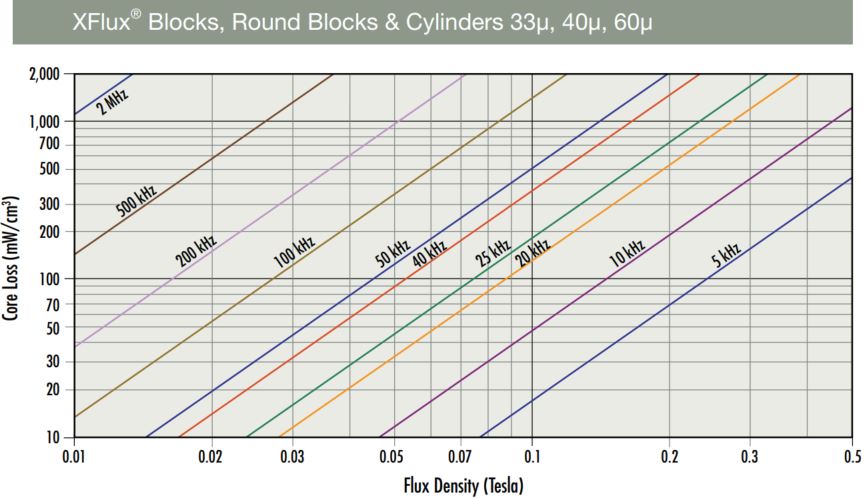

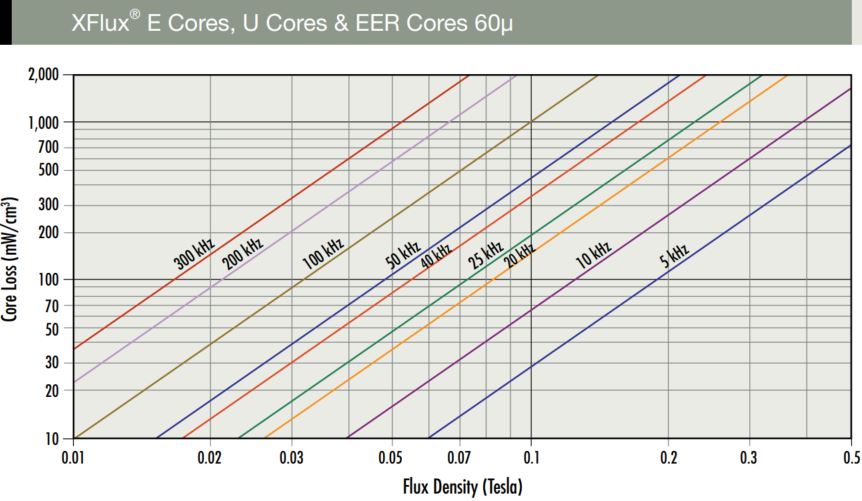

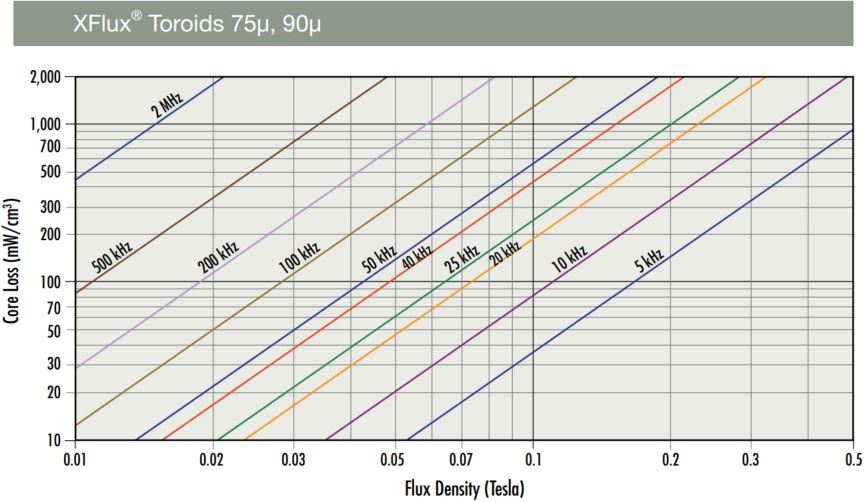

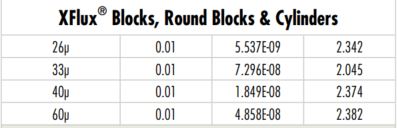

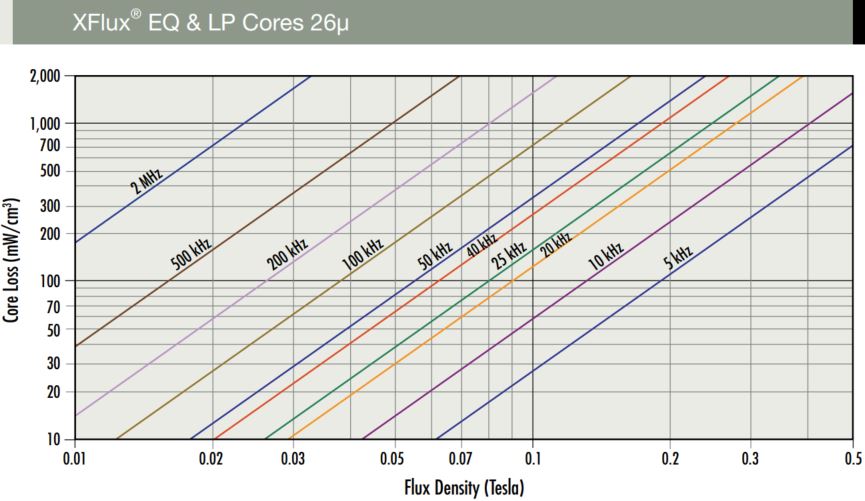

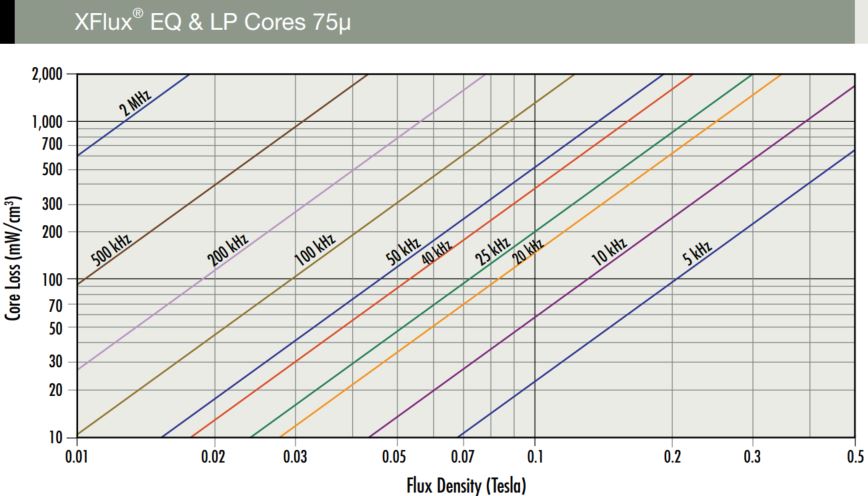

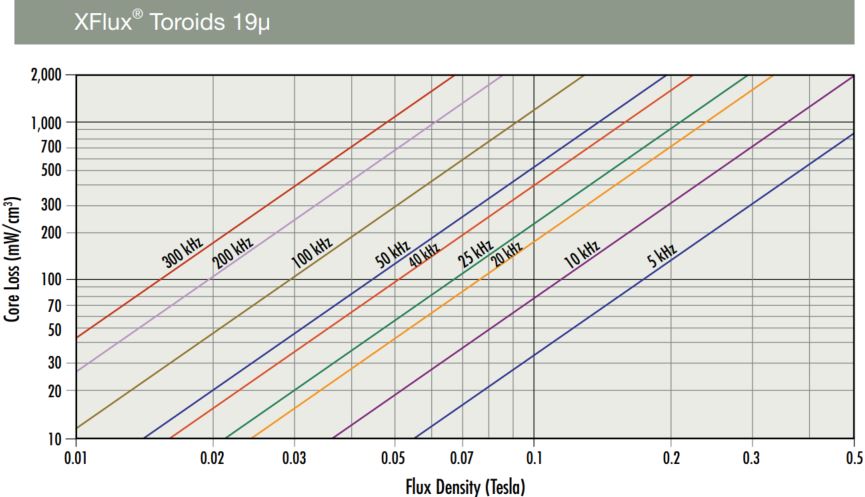

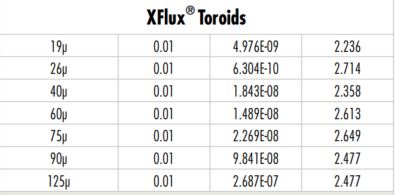

Core Loss Density Curves

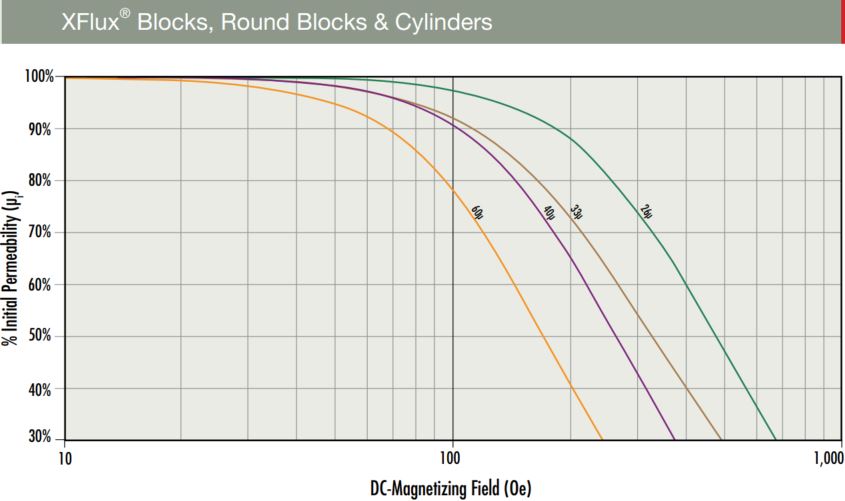

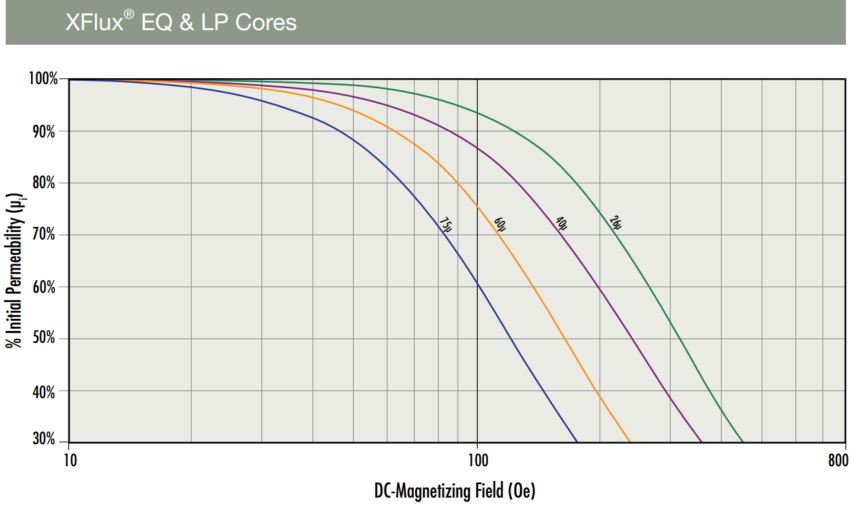

Permeability vs. DC Bias Curves

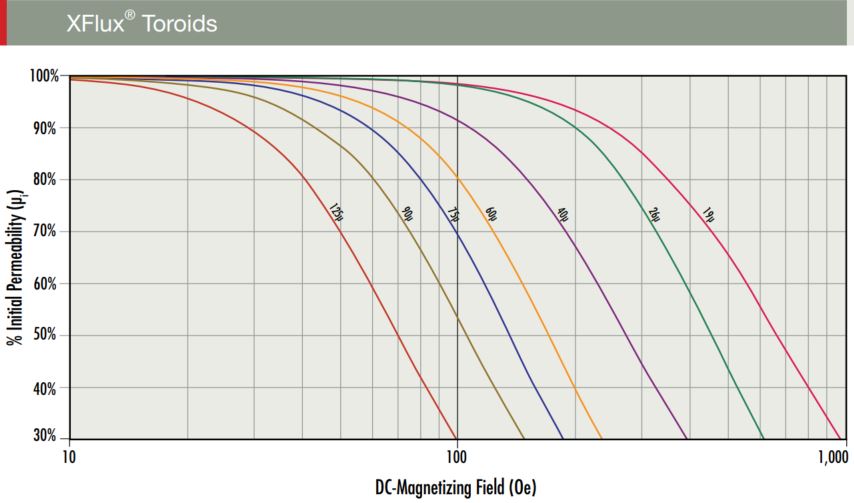

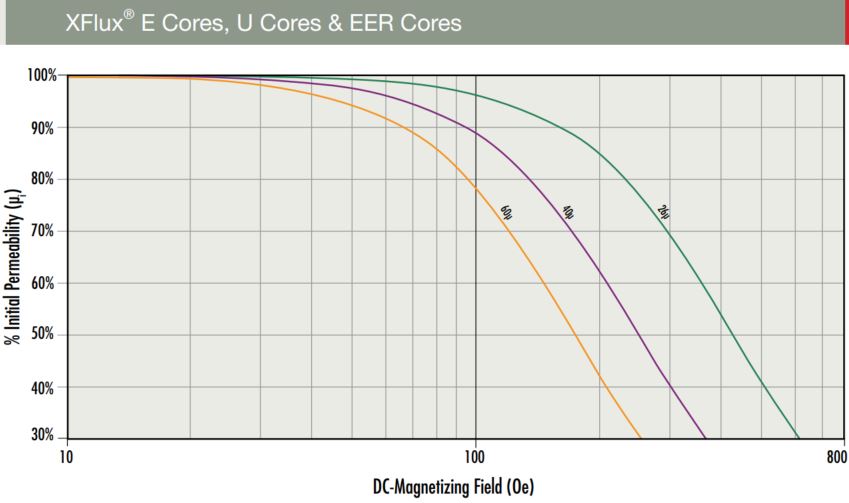

DC Magnetization Curves

Permeability vs. Temperature Curves

Permeability vs. AC Flux Curves

Permeability vs. Frequency Curves

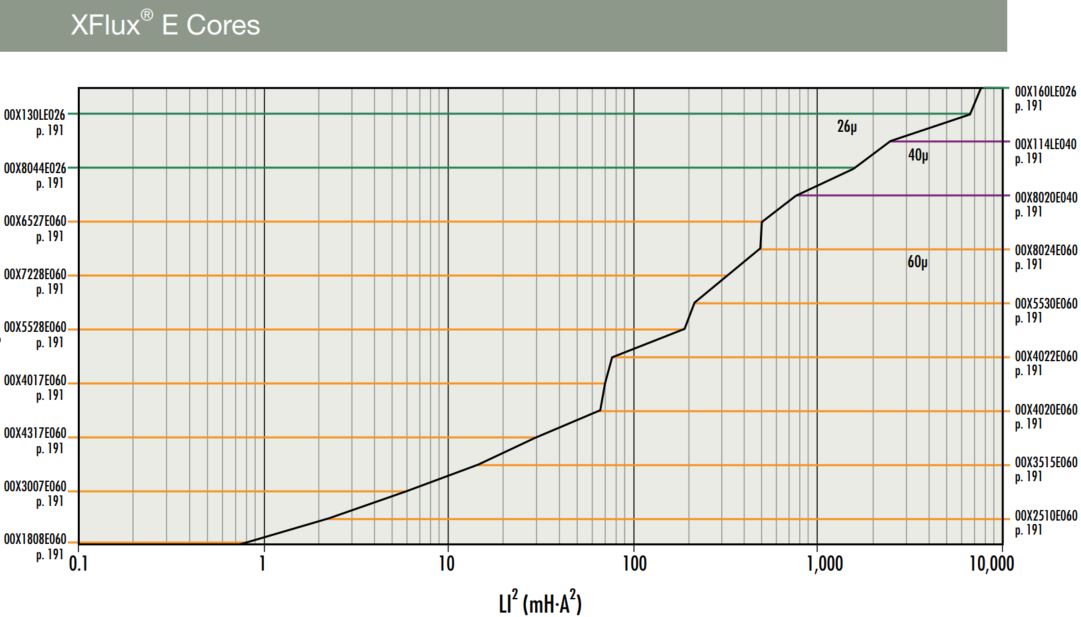

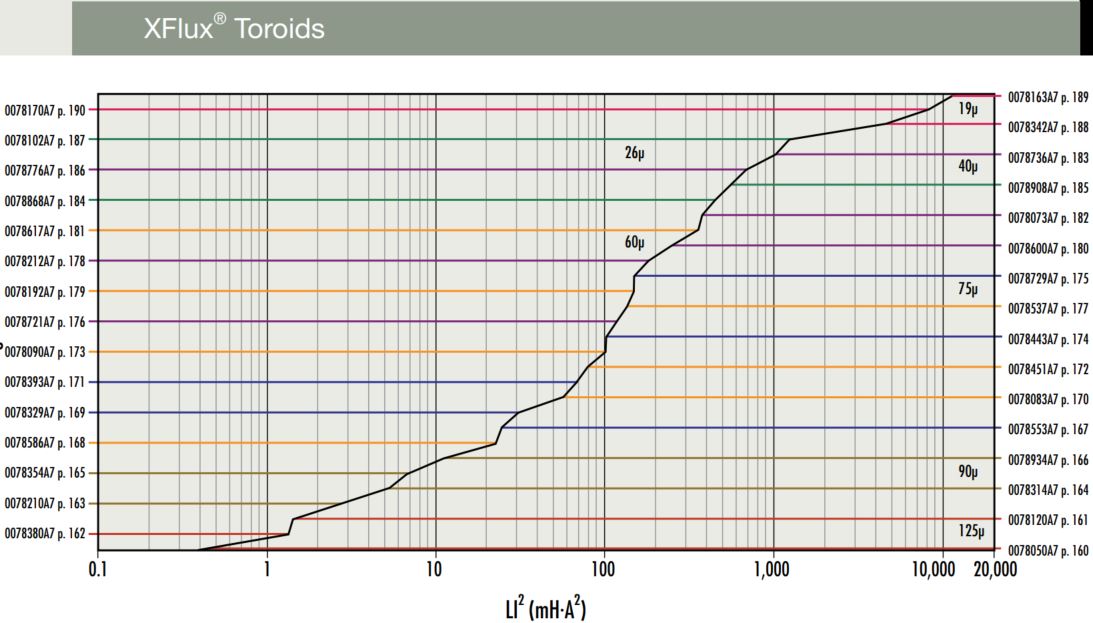

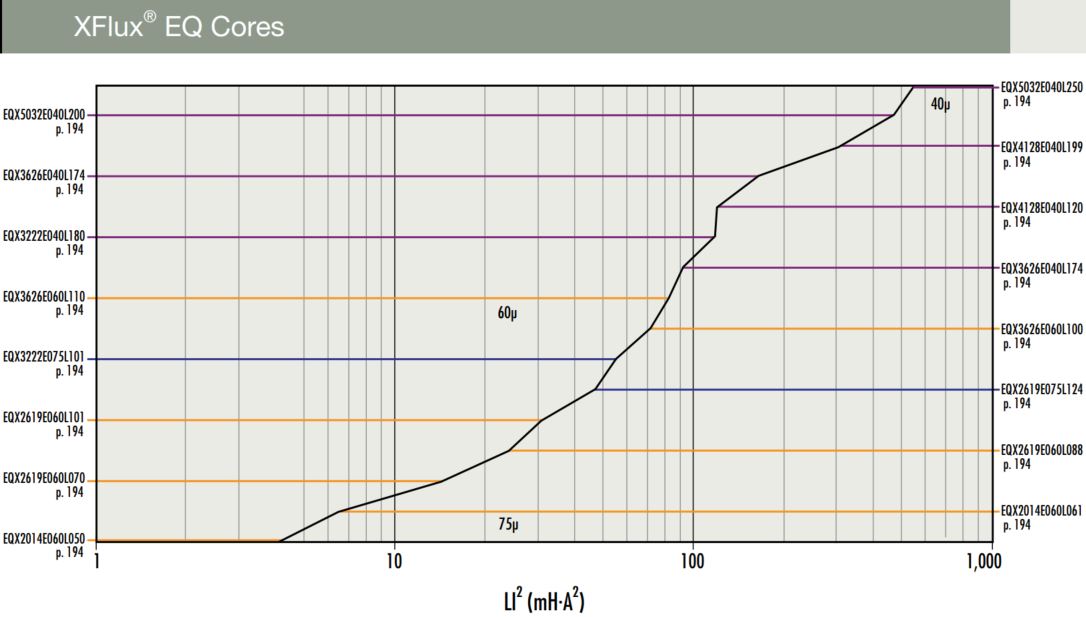

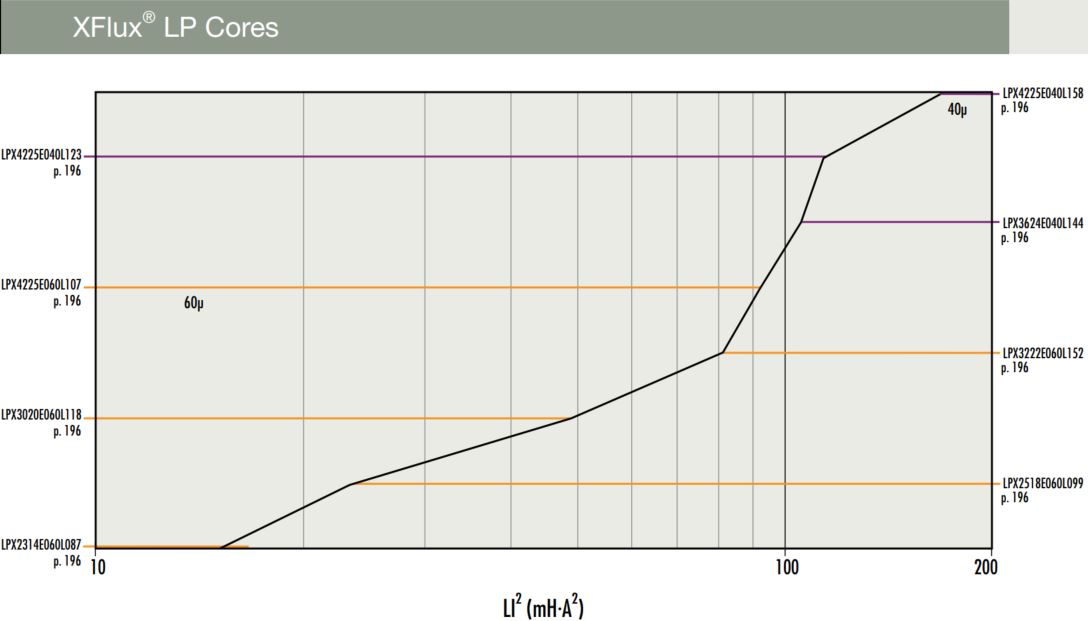

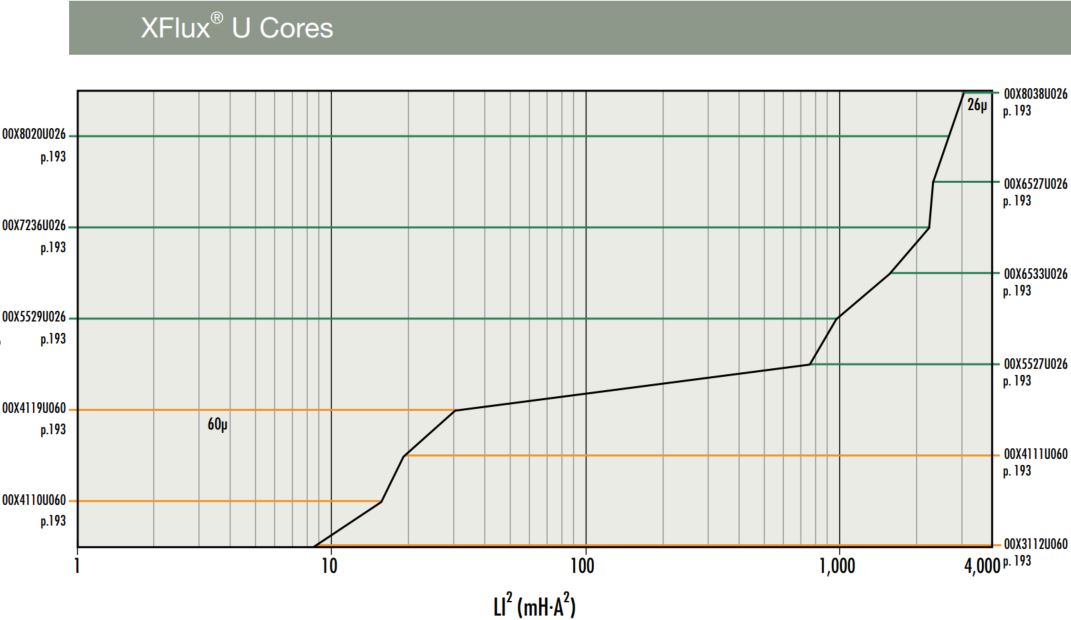

Core Selection Chart
